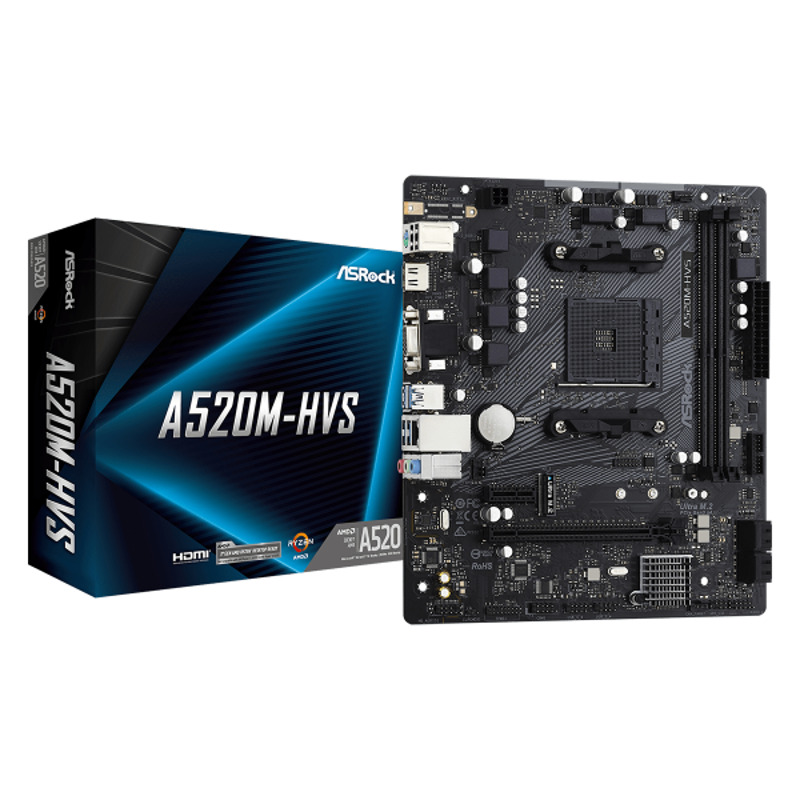

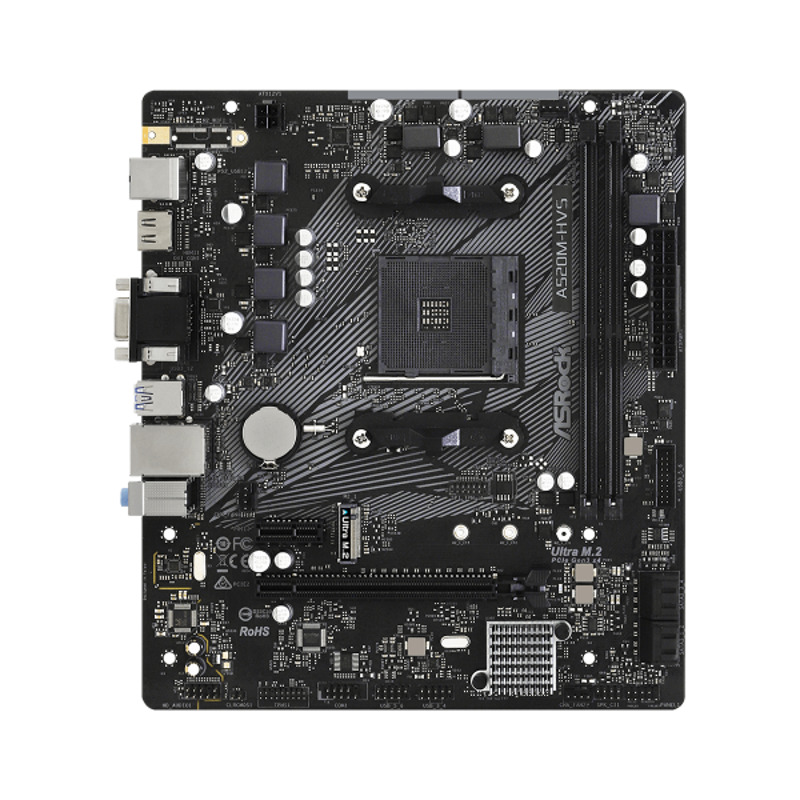

MB AM4 ASRock A520M-HVS 90-MXBE60-A0UAYZÂ Â Â
12
Ljudi gleda ovaj proizvod!
6.910 RSD
ili
RSD/mesečno
na 24 rate putem web kredita Raiffaisen banke. Saznaj Više
Iznos rate: RSD
na 24 rate putem web kredita Raiffaisen banke. Saznaj Više
6.910 RSD
ili
RSD/mesečno
na 24 rate putem web kredita Raiffaisen banke. Saznaj Više
Iznos rate: RSD
na 24 rate putem web kredita Raiffaisen banke. Saznaj Više
Nema na zalihama
Besplatna dostava na teritoriji cele Srbije!
Nema na zalihama
Nema na zalihama
Sigurna kupovina:
-
CPU– Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors*
– 6 Power Phase design*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. -
Chipset– AMD A520
-
Memory– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– Max. capacity of system memory: 64GB**
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots -
-
BIOS– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment -
Graphics– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Dual graphics output: support D-Sub and HDMI ports by independent display controllers
– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
– Supports HDR (High Dynamic Range) with HDMI 2.1
– Supports HDCP 2.3 with HDMI 2.1 Port
– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
– Supports Microsoft® PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.
-
Audio– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection -
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE -
Slots– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 1 x PCI Express 3.0 x1 Slot*Supports NVMe SSD as boot disks -
StorageCPU:
– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit -
RAID– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
-
Connector– 1 x SPI TPM Header
– 1 x COM Port Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. -

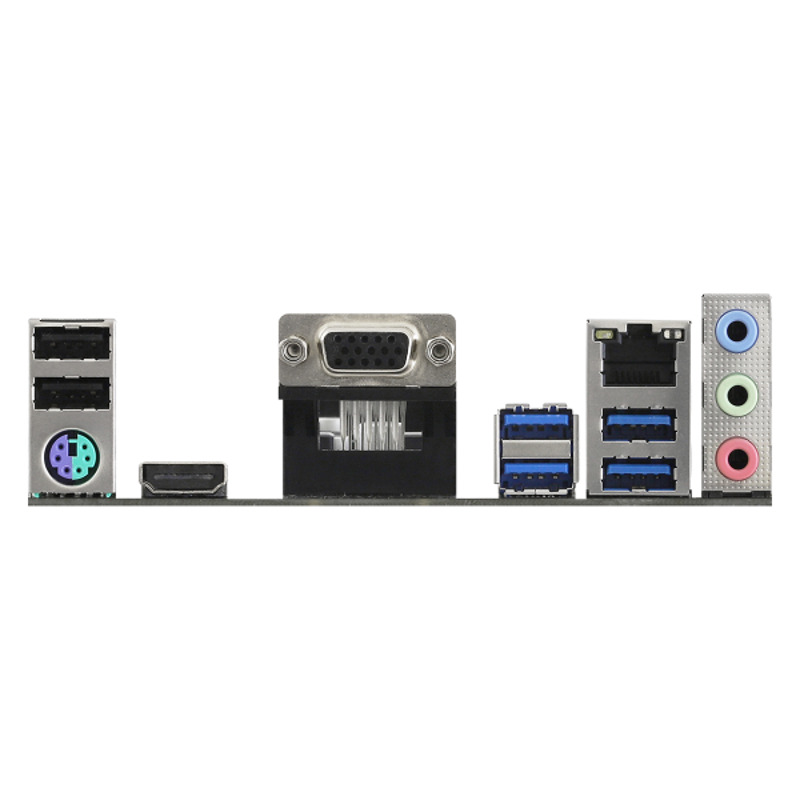

Rear Panel I/O– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
-
| Matična Ploča |
AMD |
|---|---|
| Broj PCIe Slotova |
1 |
| Podržani Procesori |
Podrška za AMD Ryzen 3000, 4000 G-Series, 5000 i 5000 G-Series seriju procesora |
| Broj RAM Slotova |
2 |
| Format Matične Ploče |
Micro-ATX {244 × 244} |
| Mrežna karta |
1 x 10/100/1000 |
| Slotovi za proširenje |
1x PCI Express 3.0 (x16 mode), 1x PCI Express 3.0 |
| Konektori na zadnjoj strani |
1x HDMI, 1x VGA D-sub, 1x PS/2, 4x USB 3.2 (Tip A) Gen1, 2x USB 2.0, 1x RJ-45 (LAN), 3x 3.5mm |
| BIOS |
128 Mb Flash EEPROM, UEFI BIOS |
| Zadnji USB |
4 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Prednji USB |
1 x USB 3.2 Gen 1 header (podržava 2 porta), 2 x USB 2.0 header (podržava 4 porta) |
| Unutrašnji Konektori |
1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x USB 3.2 Gen 1 header (podržava 2 porta), 2 x USB 2.0 header (podrška za 4 USB 2.0 porta), 1x Front panel audio, 1 x COM Port header |
| Memorija |
2 x DIMM, DDR4 |
| Proizvođač |
Asus |
| Model Matične Ploče |
ASUS PRIME A520M-K |
| Priključak [socket] |
AM4 |
| Čipset |
A520 |
| TIP RAM Memorije |
DDR4 |
| Gaming |
Ne |
| Type C |
Ne |
| Bežično Povezivanje |
Ne |
| Boja |
Crna |
| Garancija |
24 Meseca |
